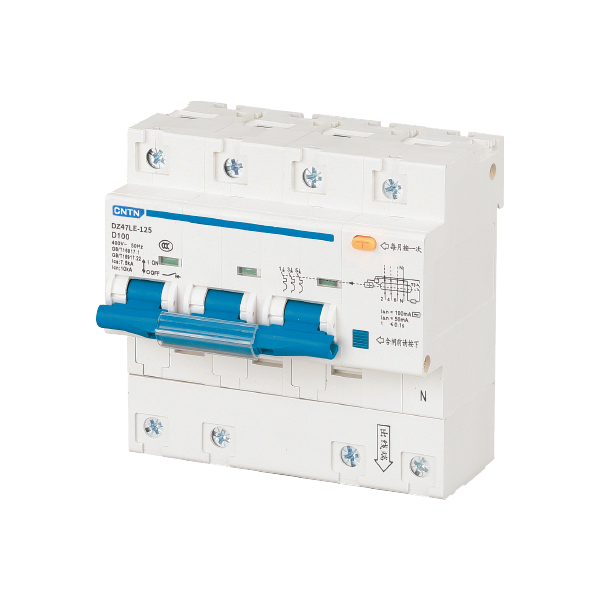

DZ47LE-125 Residual current circuit breaker

DZ47LE-125 residual current circuit breaker is suitable for circuits with an alternating current of 50Hz/60Hz, a rated voltage of single-pole two-wire, two poles at 230V, three-pole four-wire and four poles at 400V, and a rated current of up to 125A. When there is a personal electric shock or the leakage current of the power grid exceeds the specified value, the residual current operated circuit breaker can quickly cut off the faulty power supply within an extremely short time to protect the safety of people and electrical equipment. At the same time, it can protect the overload or short circuit of the circuit and the motor, and can also be used for the infrequent conversion of the circuit and the infrequent starting of the motor.
This product complies with the standards of GB/T16917.1 and IEC61009-1.
